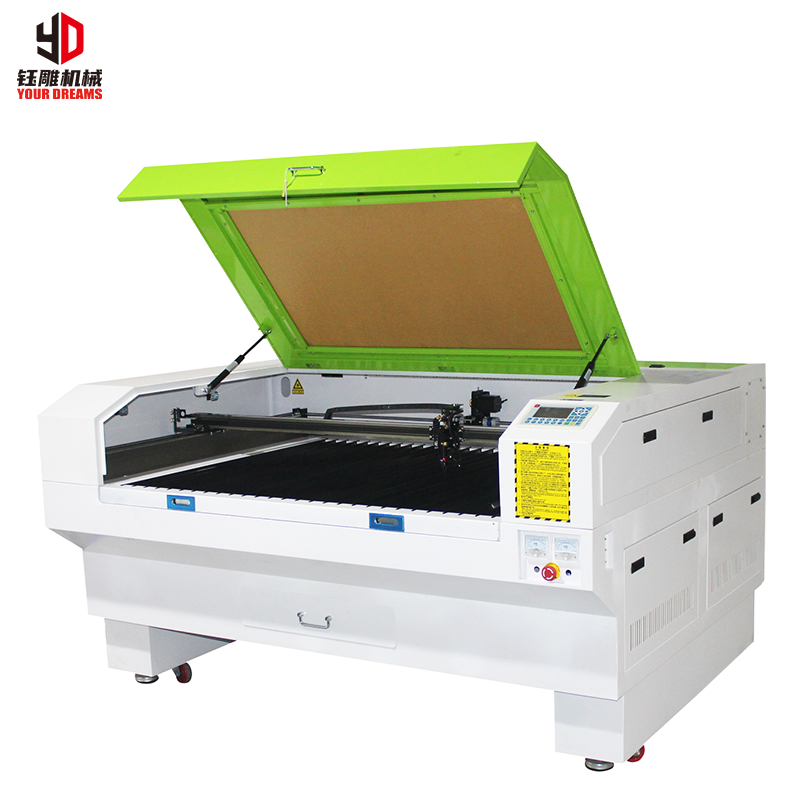

YD CO2 Laser Engraving Machine with different working area,laser power or working table, which application is engraving and cutting on acrylic, wood, fabric,cloth, leather, rubber plate, PVC, paper and other kinds of non metal materials. 9060 laser cutting machine are widely used in clothing, shoes,luggage, computer embroidery clipping, model, electronic appliances, toys,furniture, advertising decoration, packaging and printing, paper products, handicrafts, Household appliances,laser processing and other industries.
Specification
| Working desk | 1300*900mm |
| Laser power | 80w/100w/130w/150w |
| Water temperature requirements | 5℃-35℃ |
| Table structure | Aluminum knife platform |
| Breakpoint Continuation | have |
| Maximum engraving speed | 1000mm/s |
| Positioning accuracy | 0.01mm |
| Minimum engraving size | Chinese characters 2mm*2mm, letters 1*1mm |
| Platform lifting method | Fixed |
| Maximum cutting speed | 500mm/s |
| Control method | DSP |
| Cutting thickness | 0-25mm |
| Drive Mode | Stepper motor driver/Yudiao, Yankong, Lesai hybrid servo, pure AC servo optional |
| Supported formats | BMP，PLT，CDR，DXF |
| Machine size | 1800*1400*1650 |
| Machine weight | 350KG |
| Quality assurance | One year for the whole machine (18 months during the activity period) |
