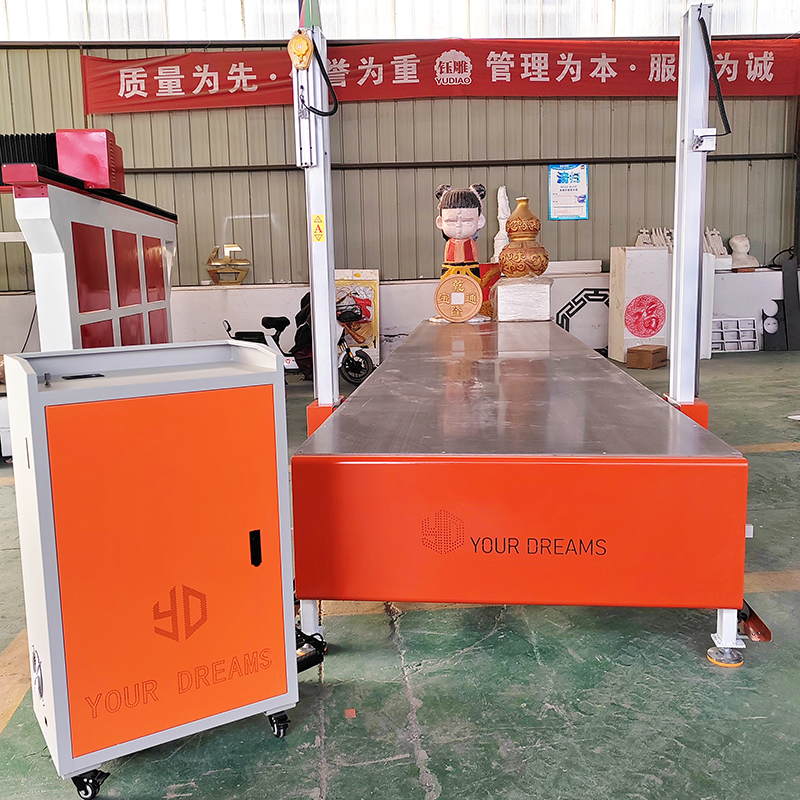

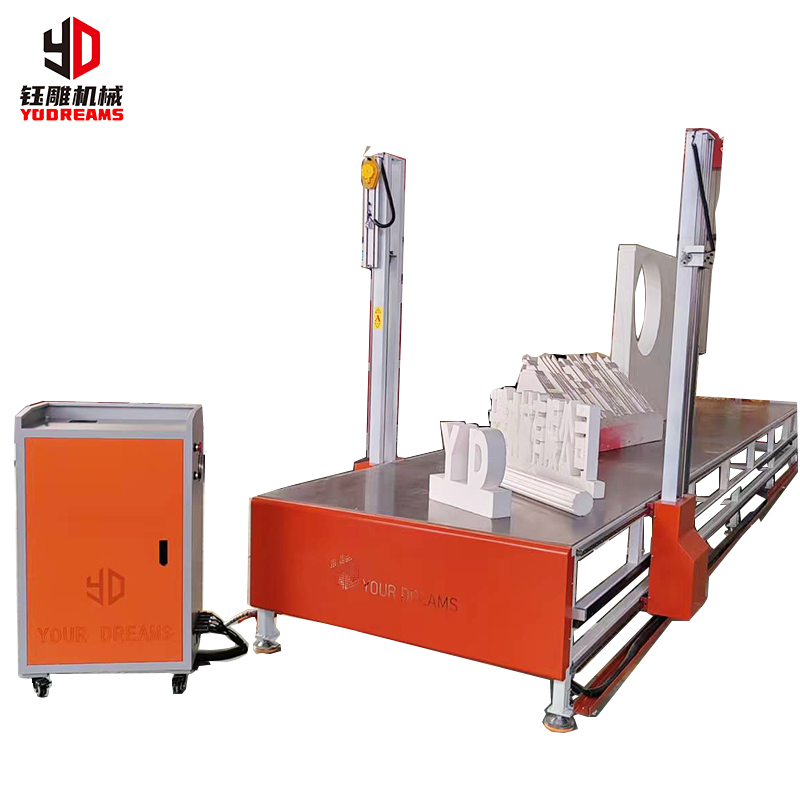

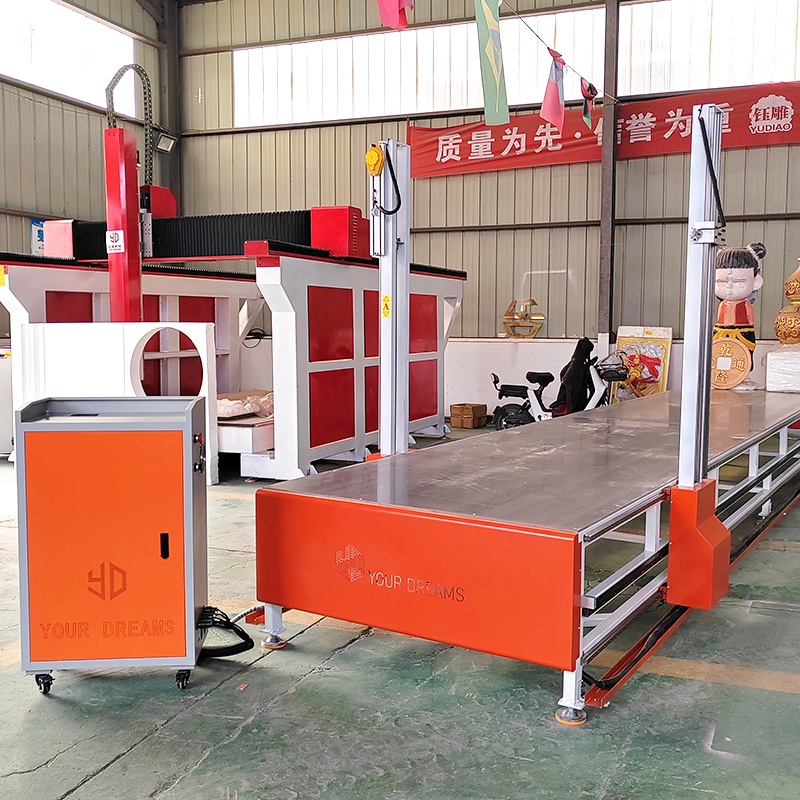

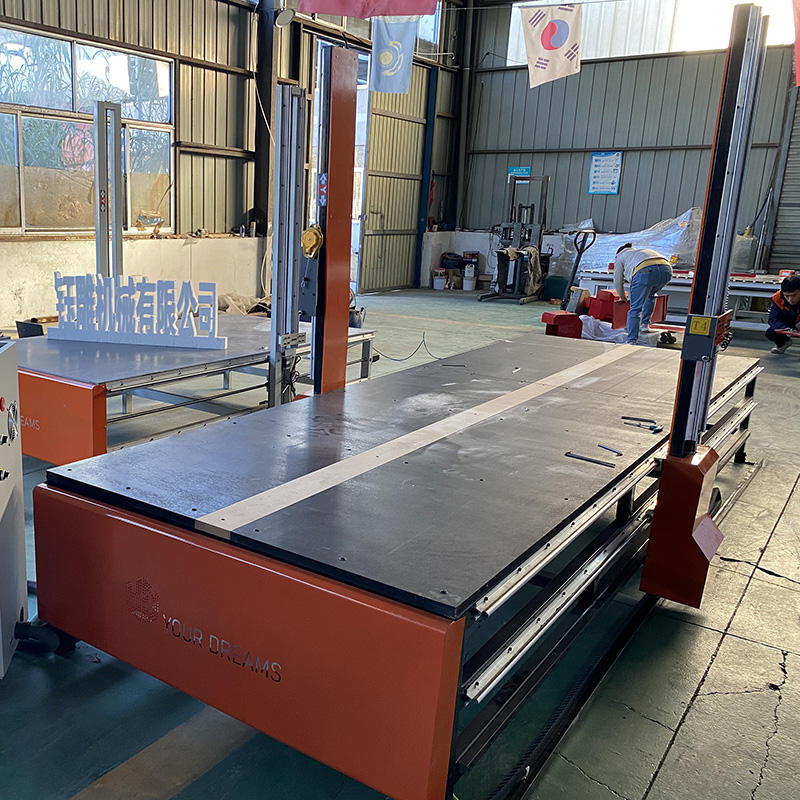

Applications: Yudiao 4-Axis Foam Cutting Machine Precision, efficiency, and versatility in one professional foam-cutting solution. Engineered with a robust 4-axis system, the Yudiao cutter delivers smooth, high-precision cuts for complex 3D shapes, letters, and contours—ideal for advertising signs, insulation panels, packaging, and art crafts. User-friendly operation, stable performance, and adjustable cutting parameters adapt to EPS, EVA, XPS, and other foam materials. Machine could add single or mulitple cutting wires according to different working size requirment.
Specification
1220-Foam cutting (for eps building exterior wall)Parameter
| Product Model | 1220 Intelligent CNC Foam Cutting Machine (4-axis) |
| Spindle Regulators | 500w (air-cooled) |
| Overall dimensions | 2400*1500*1800mm(for reference only not limited) |
| Operating voltage | 220V
|
| Work platform | First-class compressed plate for high-density engraving |
| XY travel | (X)2000*(Y)1200*(W)1300mm |
| Repeat Positioning Accuracy | ±0.5mm |
| Gantry | 4*6 square steel gantry |
| Material fixing | Glue gun can be applied or weight can be pressed |
| Foundation | 4*6 high steel structure welding, greatly increase the life of the fuselage (the whole fuselage high heat treatment spray plastic is not easy to deform) |
| Electrical machinery | 860 Step Driver X-Y-axis 450B Step Motor Precision engraving four-dimensional |
| Operating mode | Mating X-axis YD860 Y-axis YD860 Digital Stepper Motor Driver |
| XY structure | X-axis 2005 gas-precision anserial + 20mm railway, Y2005 high-precision screw + 20mm railway (round rail track has the advantages of small friction surface, no noise, wear-resistant and long operating life) |
| X/Y axis guideway | High precision linear 20mm guideway |
| Heating wire puller | Visit thousands of customers carefully modified easy to install easy to dismantle not easy to break the wire short-circuit power failure easy to cut taper |
| X-axis spindle tension line | Industrial customized spindle motor line 4 * 2 highly flexible shielded wire (anti-interference and anti-static) can be folded millions of times longer life, tension line using high-strength tension is not easy to deform and become long broken line |
| Motor cable | Industrial Customized 4*1 High Flexible Shielded Wire (Anti-interference Anti-static) |
| System environment | Windows 7 or 10 64-bit (4G or more RAM, bit) |
| Supported formats | Dwg dxf dc1 jpg bmp jif tif pcx png tga hpg |
| Cutting commands | A key to start automatic heating running automatically back to the far point off heating (fools try to operate with or without experience with a picture can be operated) |
| Operating system | Beijing Jingdiao 4D Foam Cutting Machine System |
| Switch box | Professional assembly of distribution box team: assembly exquisite one-piece test anti-interference distribution cabinet with a key to switch the two-axis four-axis manual adjustment of the temperature is more convenient |
| Regulator | Factory customized exclusive regulator regulator stable and easy to control automatic air-cooled cooling more energy-saving |
| Random Accessory | Imported heating wire fifteen meters 220V power line a customized strengthen the USB link line a 4G USB flash drive storage (programming run) software each set of electronic version of the software package |
