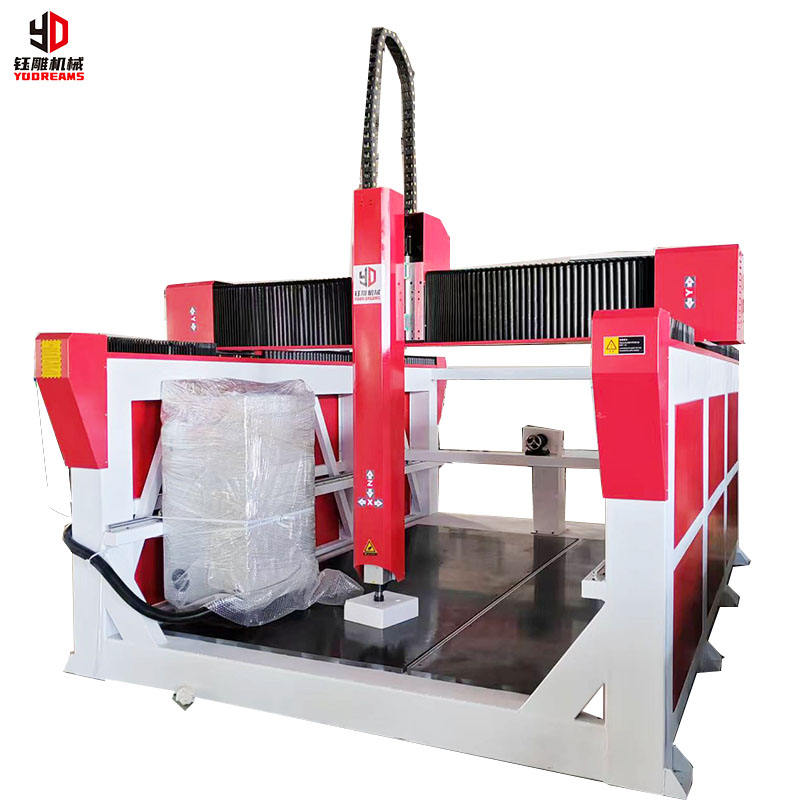

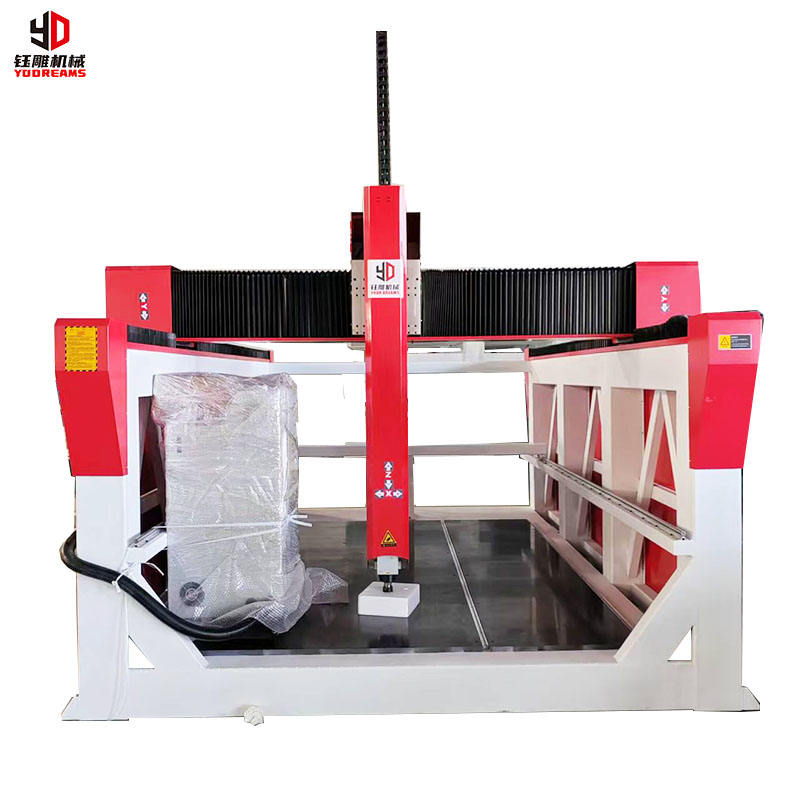

Machine Features：
1)We use top-quality four-row imported ball bearing, wide linear lead rail and self-lubricating block for the machine. It can
balance the force in all directions to ensure the machine’s accuracy and strength when engraving.
2)The route of Z axis can be heightened to 1300mm, so it is suitable for processing large-scale and super-thick material.
3)The design documents of intelligent processing cross-border protection can prevent the excessive process caused by mechanical impact.
4)The diversified processing speed can be controlled separately. The speed of idle running and roll setting improve the quality of processed products and processing efficiency greatly.
Specification
| ltems | Name |
| Working stroke (on request) | 1500mm*3000mm*1300mm |
| Maximum processing width | 1500mm |
| Maximum processing length | 3000mm |
| Maximum processing height | 1300mm |
| Appearance size | 4000mm*2500mm*2900mm |
| Gantry | 8mm thickened steel pipe large gantry, cast iron side body |
| Maximum engraving speed | 25000mm/min |
| Maximum air speed | 30000mm/min |
| Bed | Thickened heavy duty steel pipe welded bed horizontal type |
| Accuracy | ±0.01mm diagonal 1mm |
| System accuracy | ±0.2mm |
| Spindle speed | 3000-24000rpm |
| Spindle power | 6KW air-cooled spindle (HQD) |
| Spindle motor (optional) | YD self-produced, HQD |
| Clamp diameter: | 3.175mm, ¢ 4mm, ¢ 6mm, ¢ 8mm, |
| Drive system (optional): | 4-axis Pure servo motor drive |
| Control cabinet | External cabinet |
| Guide rail (optional): | YD square rail 25, 30 |
| Rack | High precision ground miter rack, carburised treatment |
| Transmission | X,Y-axis rack and pinion drive, Z-axis high-precision ball screw drive. |
| Slider (optional) | YD Slider 25, 30 |
| Frequency converter | BEST frequency converter |
| Screws | YD Eagle high precision double row ball screws |
| Software support | TYPE3, UCANCAM, ARTCAM, MASTERCAM, UG, AutoCAD |
