1325 Laser Engraving Machine: Usage and Precautions

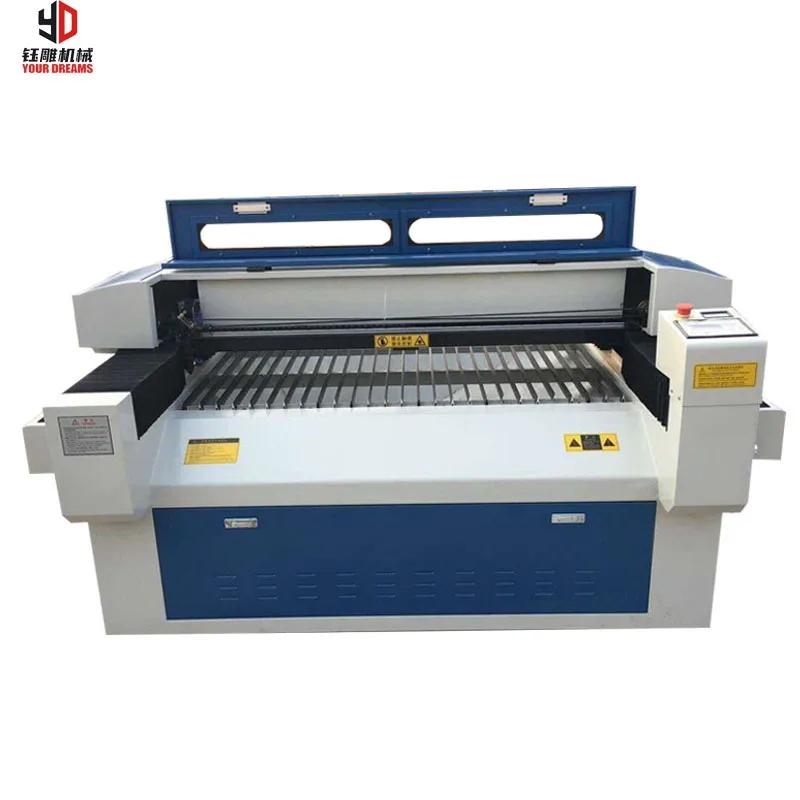

The 1325 laser engraving machine is a large-format CNC system with a standard working area of 1300mm x 2500mm, ideal for engraving and cutting materials like wood, acrylic, metal (with appropriate laser types), leather, and plastics. Commonly used in signage, furniture, and industrial manufacturing, it combines high precision with efficiency. Below is a guide to its operation and essential safety measures.

Operation Guide

1. **Preparation**

   - Place the machine on a stable, level surface to minimize vibrations. Ensure adequate ventilation and workspace clearance for large materials.

   - Secure the workpiece using clamps, vacuum tables, or fixtures to prevent shifting during engraving.

   - Inspect the laser lens, nozzle, and cooling system (air or water-cooled) for cleanliness and functionality.

2. **Software Setup**

   - Import or design patterns using CAD/CAM software (e.g., LightBurn, RDWorks). Set parameters such as laser power (e.g., 50–100W for CO2 lasers), speed (mm/s), frequency (Hz), and cutting depth based on material type and thickness.

   - Simulate the engraving path to avoid collisions or errors. Conduct a test run on scrap material to verify settings.

3. **Calibration**

   - Calibrate the laser focus using the machine’s Z-axis adjustment. Ensure the focal length matches material thickness for optimal precision.

   - Align the laser beam and set the origin point (X/Y/Z axes) using the machine’s positioning system.

4. **Engraving Process**

   - Start the laser and monitor the initial engraving phase to ensure accuracy. Large-format jobs may require periodic checks for alignment.

   - Use the emergency stop button if issues arise (e.g., material ignition, laser misalignment).

5. **Post-Processing**

   - Allow the machine to cool down after prolonged use. Remove debris and clean the lens and worktable to maintain performance.

   - Inspect engravings for consistency and depth. Store materials in a dry, dust-free environment.

---

**Key Precautions**

1. **Laser Safety**

   - **Wear protective gear**: Laser-safe goggles (specific to the laser wavelength) to prevent eye damage.

   - **Avoid direct exposure**: Never look directly at the laser beam. Ensure safety interlocks and enclosures are functional.

2. **Ventilation & Fire Prevention**

   - Use exhaust systems or fume extractors to remove toxic gases (e.g., from PVC, acrylic).

   - Keep a fire extinguisher nearby, especially when engraving flammable materials like wood or paper.

3. **Material Compatibility**

   - Verify material suitability. Avoid engraving PVC, vinyl, or halogen-containing plastics, as they release corrosive/toxic fumes.

   - Adjust power and speed settings to prevent burning or warping delicate materials.

4. **Machine Maintenance**

   - Clean lenses, mirrors, and rails weekly to prevent dust buildup, which can scatter the laser beam or cause overheating.

   - Lubricate mechanical parts (e.g., guide rails) as per the manufacturer’s schedule.

5. **Power & Workpiece Security**

   - Turn off the laser and disconnect power during maintenance or adjustments.

   - Double-check workpiece clamping to avoid movement, which can ruin designs or damage the machine.

6. **Operator Training**

   - Ensure operators are trained in emergency protocols, software operation, and material handling to minimize errors.

---

By following these guidelines, users can achieve high-quality engravings, reduce operational risks, and extend the machine’s lifespan. Always refer to the manufacturer’s manual for model-specific details. (Approx. 400 words)
