Stone Engraving Machine: Usage and Precautions

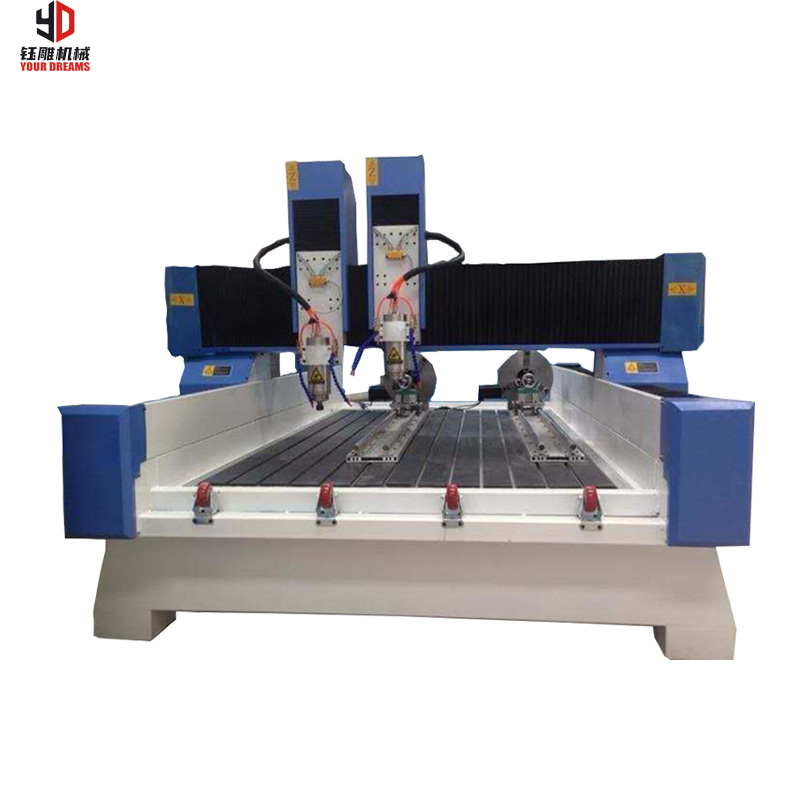

A stone engraving machine is a CNC (Computer Numerical Control) device designed for carving intricate patterns, text, or 3D sculptures into hard materials like granite, marble, slate, and quartz. Widely used in monument-making, architectural decoration, and art industries, it combines precision cutting tools with robust mechanics. Below is a guide to its operation and essential safety practices.

**Operation Guide**

1. **Preparation**

   - Place the machine on a stable, vibration-resistant surface. Ensure adequate workspace lighting and ventilation.

   - Secure the stone slab using vacuum clamps, fixtures, or adhesive backing to prevent movement during engraving.

   - Install a diamond-tipped or carbide engraving bit suited to the stone’s hardness. Check tool sharpness and alignment.

2. **Software Setup**

   - Import or design patterns using CAD/CAM software (e.g., ArtCAM, AutoCAD). Set parameters like spindle speed (e.g., 8,000–15,000 RPM), feed rate, and cutting depth based on stone type and complexity.

   - Simulate toolpaths to avoid collisions. Test settings on a scrap stone piece to optimize results.

3. **Calibration**

   - Set the workpiece origin (X/Y/Z axes) using the machine’s probe or manual alignment.

   - Adjust the cooling system (e.g., water mist or air blower) to reduce dust and prevent tool overheating.

4. **Engraving Process**

   - Start the spindle and monitor initial passes to ensure accuracy. For deep carvings, use multiple shallow passes to avoid tool stress.

   - Pause periodically to clear stone dust and check tool wear. Use the emergency stop if vibrations or misalignment occur.

5. **Post-Processing**

   - Clean the workpiece and machine bed to remove abrasive dust. Inspect engravings for quality and depth.

   - Lubricate guide rails and maintain the spindle according to the manufacturer’s schedule.

**Key Precautions**

1. **Safety Measures**

   - **Wear PPE**: Safety goggles, a respirator (N95+), and hearing protection to guard against stone dust and noise.

   - Ensure proper ventilation or use dust extraction systems to minimize airborne silica particles, which pose respiratory risks.

2. **Tool Management**

   - Inspect bits for wear or damage before use. Dull tools reduce precision and increase machine strain.

   - Adjust feed rates to match stone hardness—softer stones (e.g., sandstone) require slower speeds to prevent chipping.

3. **Material Handling**

   - Avoid uneven or cracked stones, as they may shatter during engraving.

   - Use cooling systems to prevent tool overheating and reduce dust buildup.

4. **Machine Maintenance**

   - Clean guide rails, ball screws, and motors daily to prevent abrasive dust from damaging components.

   - Regularly check coolant levels and filters in water-cooled systems.

5. **Power & Emergency Protocols**

   - Disconnect power before tool changes or maintenance.

   - Keep an emergency stop button accessible and train operators in shutdown procedures.

6. **Workpiece Security**

   - Double-check clamping mechanisms, as vibrations from hard stones can loosen fixtures.

By adhering to these guidelines, users can achieve precise engravings, enhance safety, and prolong the machine’s lifespan. Always consult the manufacturer’s manual for model-specific details.
